An ABS mould for precast or cast-in-place concrete balusters and handrail posts, in European, modern or Chinese profiles. Five pieces to a set, in heights from 660 to 950 mm.
Send the configuration, quantity and destination port and we will quote it with the packed dimensions and weight.

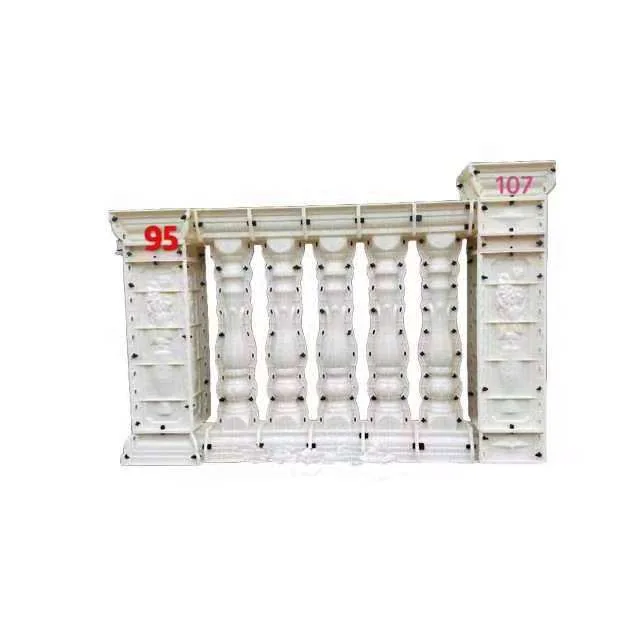

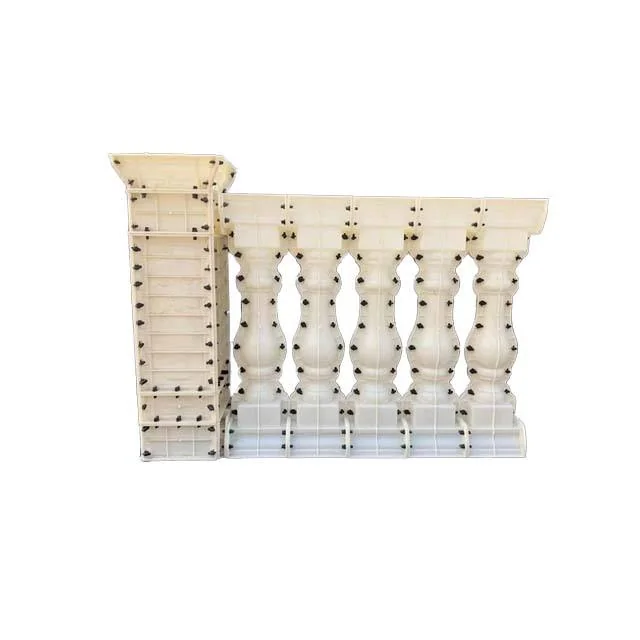

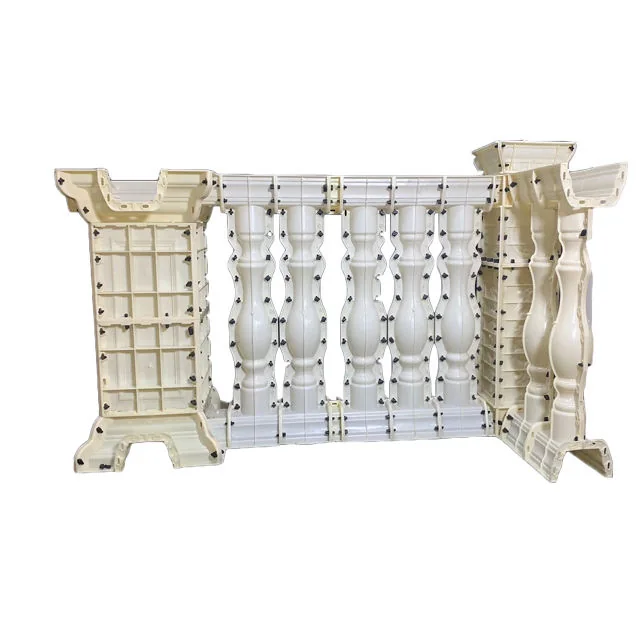

The renfa-1 is an ABS mould set for casting concrete balusters and handrail posts, five pieces to a set, in heights from 660 mm to 950 mm. The same set covers square and round profiles, and the minimum order is one set.
Eight heights: 660, 760, 850, 860, 880, 900, 930 and 950 mm. Each piece is 200 mm long and a set contains five pieces.
Both - square and round profiles are covered, with M1 to M20 pattern profiles available. Design styles include European, modern and Chinese.
Oil and assemble the mould, thread the rebar through the rotary hole, pour, then strip after about 35 hours and finish. It works for precast and for cast-in-place work.
One set, with mould life quoted at 2 to 3 years. Delivery is 3 to 5 days after payment; a single package measures 80 × 40 × 20 cm at 4 kg gross, in a woven bag or carton box.
Factory figures for the renfa-1. Confirm the final configuration on your quotation — options listed here are quoted separately.
| Shaping mode | Preform mould |
|---|---|
| Material | ABS plastic |
| Product | Concrete baluster mould |
| Style | European |
| Colour | White |
| Mould life | 2–3 years |
| Heights | 660, 760, 850, 860, 880, 900, 930, 950 mm |
|---|---|
| Length | 200 mm |
| Pieces per set | 5 |
| Shapes | Square and round |
| Profiles | M1 to M20 |
| MOQ | 1 set |
|---|---|
| Package | Woven bag or carton box |
| Delivery time | 3–5 days after payment |
| Single package | 80 × 40 × 20 cm |
|---|---|
| Gross weight | 4.0 kg |
Figures are factory data from the manufacturer's specification sheets and catalogue.
