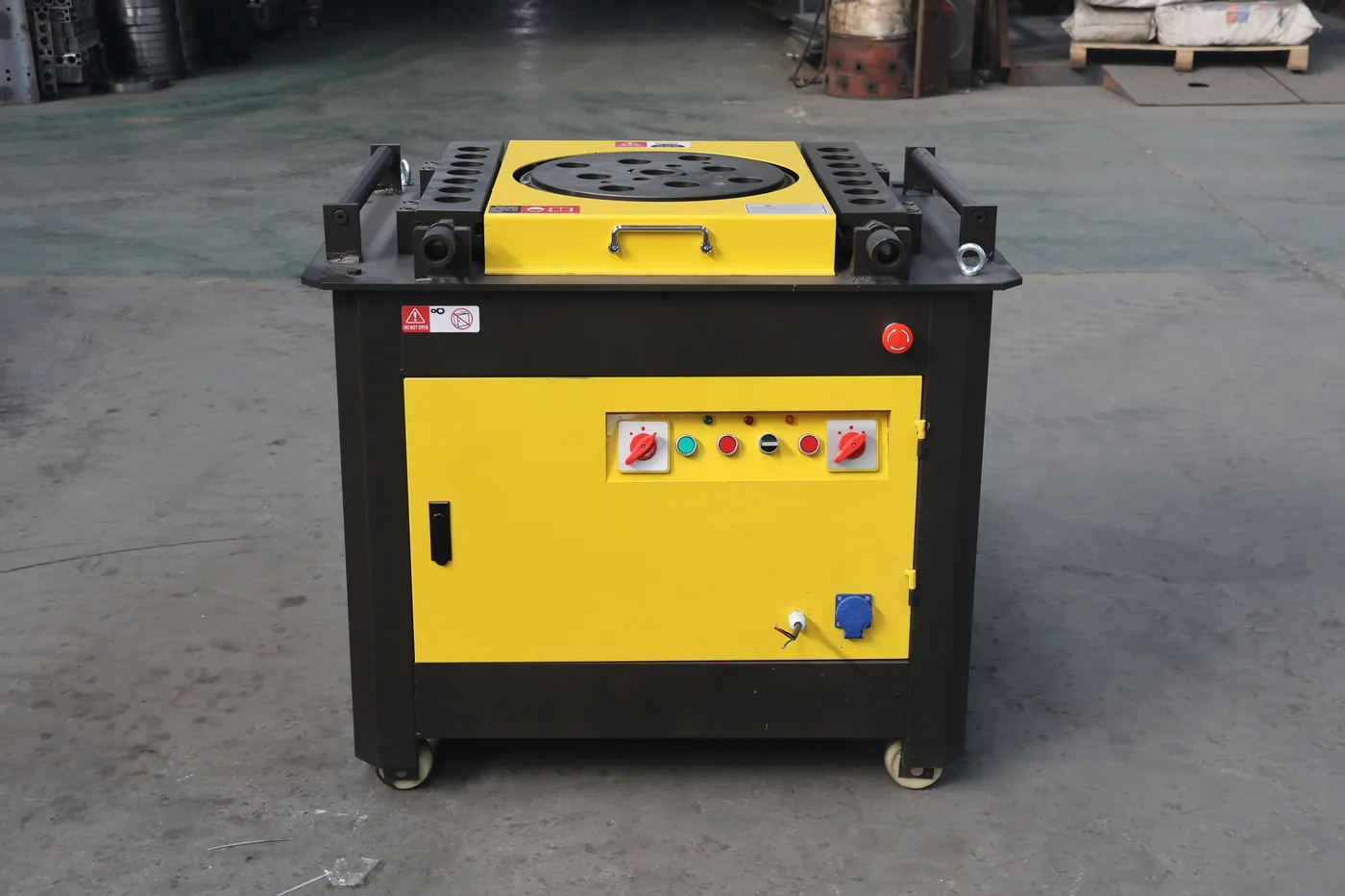

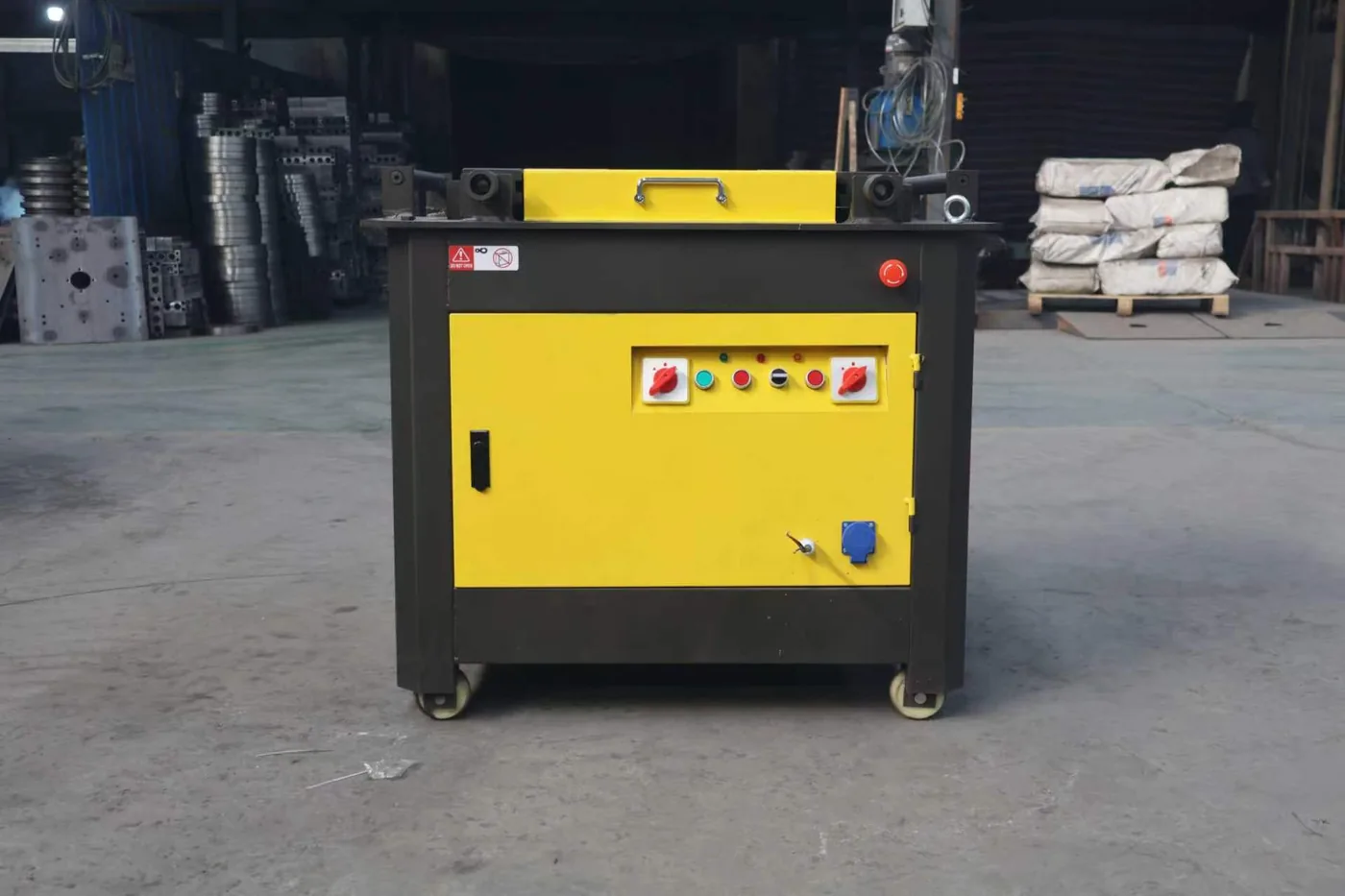

Bench-Type Electric Rebar Bending Machine — 40 mm

Bench-mounted electric bender for forming stirrups, hooks and bent bars up to 40 mm, driven by a geared motor with a foot-pedal control circuit.

Max bar capacity40 mmDriveElectric motorTypeBench / stand mounted
PriceQuoted to your specification

Send the configuration, quantity and destination port and we will quote it with the packed dimensions and weight.

Key features

  • Forms stirrups, hooks and bent bars to a preset angle
  • Geared drive with forward and reverse rotation for repeat work
  • Working table with centre pin and roller mandrel set
  • Pedal control leaves both hands free to hold the bar

Quick answer

The 40 mm electric rebar bender forms stirrups, hooks and bent bars up to 40 mm on a bench- or stand-mounted machine. A geared motor turns the working table forward and reverse under pedal control, so a preset angle can be repeated with both hands left free to hold the bar.

What is the largest bar the 40 mm bender handles?

40 mm. It is the smallest of the three bending machines in the range; the 50 mm and 60 mm models take larger bar.

How is the bending angle controlled?

The working table rotates forward and reverse under a pedal switch, against a preset stop. Pedal control is what makes repeat work to the same angle consistent, because both hands stay on the bar.

How is the machine mounted?

Bench or stand mounted, with a working table, a centre pin and a roller mandrel set. It is not a hand tool and has to be fixed down before use.

What does it cost?

On request. The configuration is quoted per destination, so send the bar sizes and the volumes you bend. It ships in a wooden case for sea freight.

Specification

Factory figures for the 40 mm capacity. Confirm the final configuration on your quotation — options listed here are quoted separately.

40 mm capacity — technical data
Performance
Maximum bar diameter40 mm
Machine typeElectric bending machine with working table
ControlForward / reverse with pedal switch
Range options
40 mm modelThis machine
50 mm modelAvailable — larger bending table and motor
60 mm modelAvailable — heavy-duty fabrication yard model
Supply
ConfigurationQuoted per destination
PackingWooden case for sea freight
PriceOn request — send your bar sizes and volumes

Figures are factory data from the manufacturer's specification sheets and catalogue.

Where it is used

  • Site rebar fabrication yards cutting and bending for slabs and columns
  • Precast plants forming reinforcement cages
  • Rebar processing shops supplying several sites
