Adjustable Square Column Mould 425 × 600

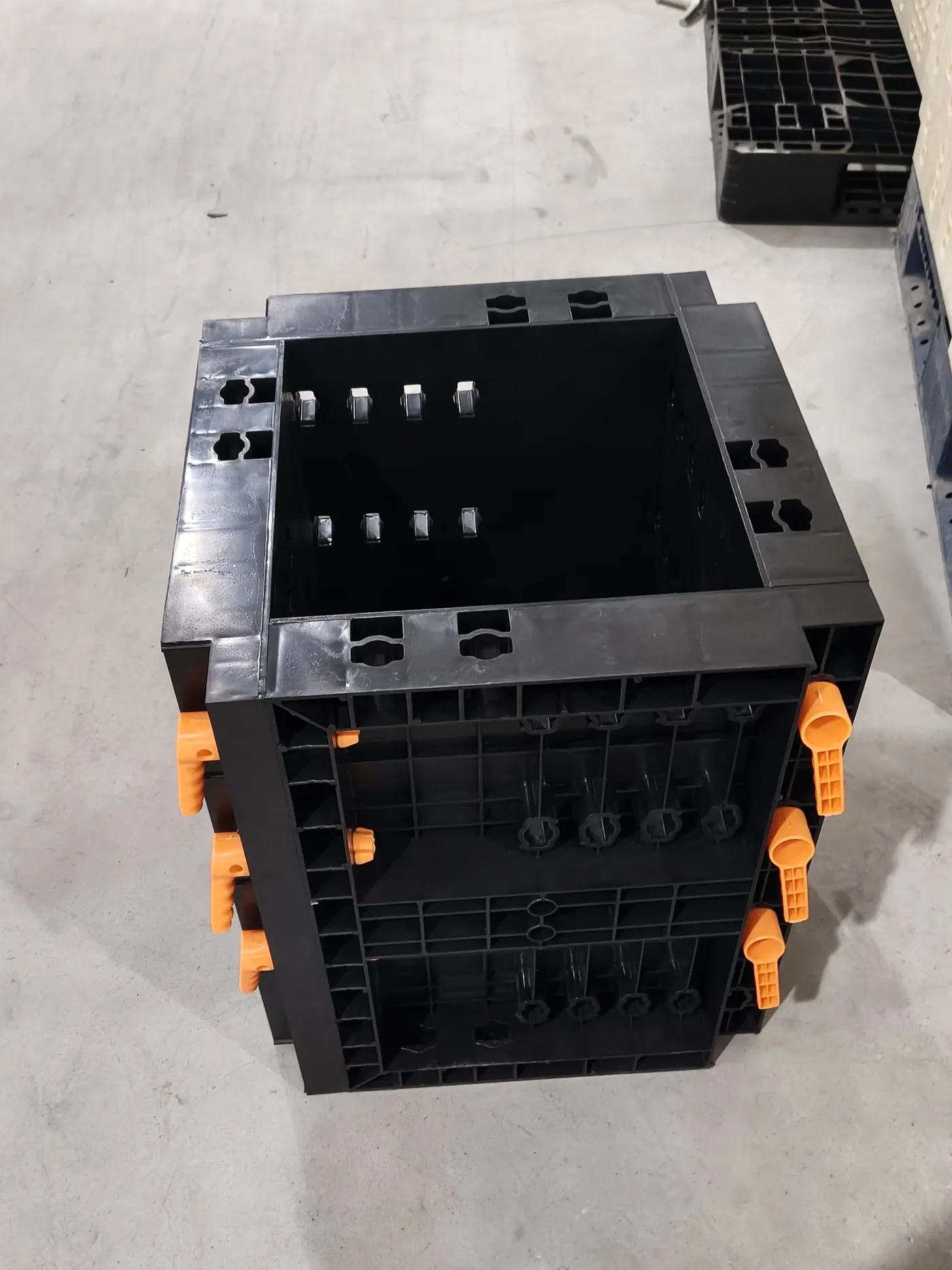

Reusable plastic square column mould, 600 mm forming height. 5-hole version casts 150 to 350 mm columns, 2-hole version casts 300 and 350 mm columns.

Mould size425 × 600 mmForming height600 mmAdjustment2-hole / 5-hole
PriceQuoted to your specification

Send the configuration, quantity and destination port and we will quote it with the packed dimensions and weight.

Key features

  • Adjusts between column widths — one set covers several product sizes
  • Reusable plastic construction for repeated casting cycles
  • Material choice of PP, virgin PP or ABS depending on required surface finish and service life
  • Light enough for a single operator to assemble and strip

Quick answer

The 425 × 600 adjustable column mould casts square columns at several widths from one set, with a 600 mm forming height. The two-hole version casts 300 mm and 350 mm columns; the five-hole version casts 150, 200, 250, 300 and 350 mm.

What column sizes can it cast?

The two-hole version casts 300 mm and 350 mm columns. The five-hole version casts 150, 200, 250, 300 and 350 mm - five widths from the one set.

How much column does one set make?

600 mm of forming height per set. Columns are built up in successive lifts.

What material should I choose?

PP, virgin PP or ABS. The choice sets the surface finish you get and the working life of the set, so it depends on how many casting cycles you expect.

What does it cost, and can I get a custom size?

On request - specify the adjustment version and material. Custom sizes are developed from your drawings or samples.

Specification

Factory figures for the 425 × 600. Confirm the final configuration on your quotation — options listed here are quoted separately.

425 × 600 — technical data
Adjustment
2-hole versionCasts 300 mm and 350 mm columns
5-hole versionCasts 150 / 200 / 250 / 300 / 350 mm columns
Forming height600 mm per set
Mould
Mould size425 × 600 mm
Material optionsPP, virgin PP or ABS
TypeReusable adjustable plastic mould
Supply
PriceOn request — specify adjustment version and material
CustomisationCustom sizes developed from your drawings or samples

Figures are factory data from the manufacturer's specification sheets and catalogue.

Where it is used

  • Precasting decorative square columns for porches and gateways
  • Producing columns in several sizes from one stock item
  • Garden, park and landscape columns cast on site
