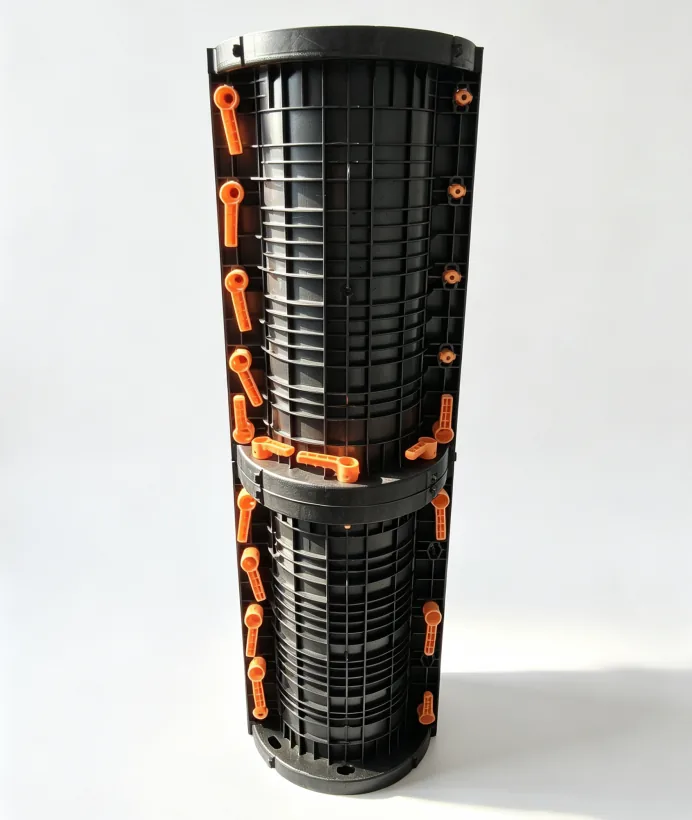

Round column mould with a 750 mm forming height, in five fixed diameters from 300 mm to 500 mm. Made in PP, virgin PP or ABS for precast round columns.
Send the configuration, quantity and destination port and we will quote it with the packed dimensions and weight.
The round column mould has a 750 mm forming height and comes in five fixed diameters from 300 mm to 500 mm. Unlike the adjustable square moulds, each diameter is its own fixed set.
300, 350, 400, 450 and 500 mm, all with a 750 mm forming height per set.
No - this is a fixed-diameter mould, so each diameter is ordered separately. The adjustable range is the square column moulds, which cast several widths from one set.
Stack the sets. Each one gives 750 mm of forming height.
On request - specify the diameter and the material (PP, virgin PP or ABS). Custom diameters are developed from your drawings or samples.
Factory figures for the 750 mm height. Confirm the final configuration on your quotation — options listed here are quoted separately.
| 750 × 300 mm | 750 mm height · 300 mm diameter |
|---|---|
| 750 × 350 mm | 750 mm height · 350 mm diameter |
| 750 × 400 mm | 750 mm height · 400 mm diameter |
| 750 × 450 mm | 750 mm height · 450 mm diameter |
| 750 × 500 mm | 750 mm height · 500 mm diameter |
| Forming height | 750 mm per set |
|---|---|
| Material options | PP, virgin PP or ABS |
| Type | Reusable round plastic mould |
| Price | On request — specify diameter and material |
|---|---|
| Customisation | Custom diameters developed from your drawings or samples |
Figures are factory data from the manufacturer's specification sheets and catalogue.
Your enquiry reaches the same person who handles production and loading, in English, the same working day.
