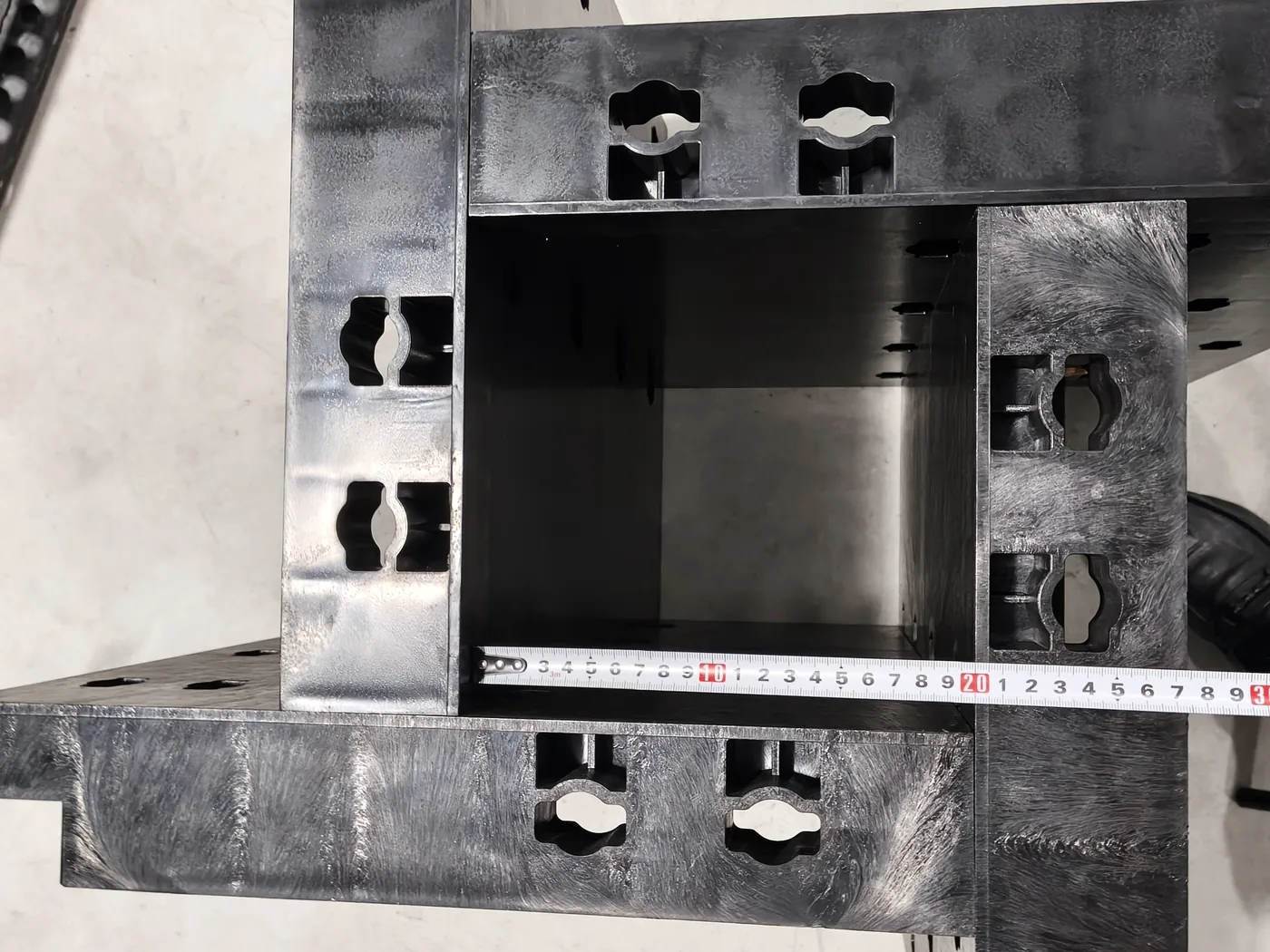

Adjustable Square Column Mould 725 × 600

Wider adjustable column mould casting 150 mm to 650 mm square columns, with a 600 mm forming height per set.

Mould size725 × 600 mmForming height600 mmAdjustment150 – 650 mm
PriceQuoted to your specification

Send the configuration, quantity and destination port and we will quote it with the packed dimensions and weight.

Key features

  • Casts six column widths from a single set, from 150 mm to 650 mm
  • The widest adjustment range in the 600 mm forming-height range
  • Material choice of PP, virgin PP or ABS
  • Reusable through repeated casting cycles

Quick answer

The 725 × 600 has the widest adjustment range among the moulds with a 600 mm forming height, casting 150 mm to 650 mm square columns from a single set. Six widths come from the one mould.

Which column widths does it cast?

150, 250, 350, 450, 550 and 650 mm - six widths. It is the widest adjustment range in the 600 mm forming-height group.

What is it best suited to?

Yards that want one mould covering many orders, and precasters producing columns across a wide size range without holding separate fixed moulds for each width.

What material should I choose?

PP, virgin PP or ABS, reusable through repeated casting cycles. The material choice sets the surface finish and the working life.

What does it cost, and can I get a custom size?

On request - specify the material. Custom sizes are developed from your drawings or samples.

Specification

Factory figures for the 725 × 600. Confirm the final configuration on your quotation — options listed here are quoted separately.

725 × 600 — technical data
Adjustment
Adjustable column sizes150 / 250 / 350 / 450 / 550 / 650 mm
Forming height600 mm per set
Mould
Mould size725 × 600 mm
Material optionsPP, virgin PP or ABS
TypeReusable adjustable plastic mould
Supply
PriceOn request — specify material
CustomisationCustom sizes developed from your drawings or samples

Figures are factory data from the manufacturer's specification sheets and catalogue.

Where it is used

  • Precasting columns across a wide size range
  • Decorative columns for gardens, parks and entrances
  • Yards that want one mould covering many orders
