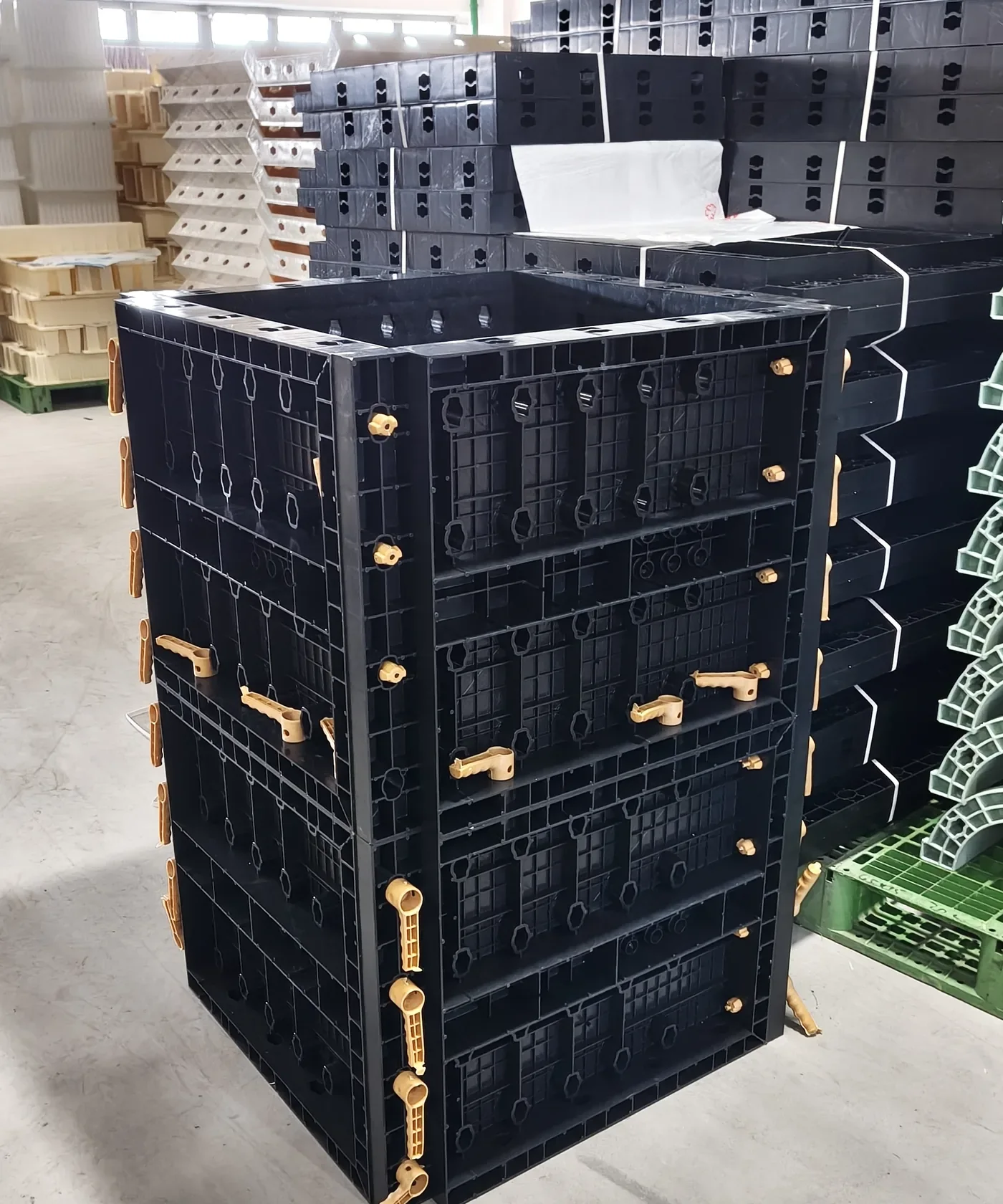

Adjustable Square Column Mould 750 × 730

Tallest adjustable square column mould in the range, casting 50 mm to 600 mm columns with a 750 mm forming height per set.

Mould size750 × 730 mmForming height750 mmAdjustment50 – 600 mm
PriceQuoted to your specification

Send the configuration, quantity and destination port and we will quote it with the packed dimensions and weight.

Key features

  • Twelve column sizes from one set — 50 mm through 600 mm
  • Taller 750 mm forming height for faster column build-up
  • Material choice of PP, virgin PP or ABS
  • Reusable through repeated casting cycles

Quick answer

The 750 × 730 is the tallest adjustable square column mould in the range, with a 750 mm forming height and twelve column widths from 50 mm to 600 mm in one set.

How many sizes does one set cast?

Twelve - 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550 and 600 mm.

Why the taller forming height?

750 mm per set against 600 mm on the other three adjustable square moulds, which means fewer lifts to build one column.

What is it used for?

Slim decorative columns and larger structural sizes from one mould - balusters, pilasters and feature columns - and for yards that want maximum size coverage from minimum stock.

What does it cost, and can I get a custom size?

On request - specify the material. Custom sizes are developed from your drawings or samples.

Specification

Factory figures for the 750 × 730. Confirm the final configuration on your quotation — options listed here are quoted separately.

750 × 730 — technical data
Adjustment
Adjustable column sizes50 / 100 / 150 / 200 / 250 / 300 / 350 / 400 / 450 / 500 / 550 / 600 mm
Forming height750 mm per set
Mould
Mould size750 × 730 mm
Material optionsPP, virgin PP or ABS
TypeReusable adjustable plastic mould
Supply
PriceOn request — specify material
CustomisationCustom sizes developed from your drawings or samples

Figures are factory data from the manufacturer's specification sheets and catalogue.

Where it is used

  • Precasting slim decorative columns and larger structural sizes from one mould
  • Producing balusters, pilasters and feature columns
  • Yards needing maximum size coverage from minimum stock
